Federal Farm Credit Banks Funding Corporation
Location: 30 Hudson Street, Jersey City, NJ
Office technology upgrade — AV/video conferencing, access control & video surveillance, structured cabling, IT room build-out, sound masking
Profile Summary
CTCI partnered with Federal Farm Credit Banks Funding Corporation to modernize their Jersey City headquarters with an integrated ecosystem of collaboration, security, and infrastructure technology. From boardroom-grade video conferencing to enterprise-level access control and a rebuilt IT backbone, the project reflects CTCI’s ability to serve as a single-source technology partner for complex, multi-discipline commercial builds.
Project Overview
CTCI is delivering a comprehensive technology upgrade for Federal Farm Credit Banks Funding Corporation’s Jersey City office, covering AV/video conferencing, security, structured cabling, and sound masking across the space. The Empire Conference Room features a full Poly Codec video conferencing system with a 110″ display and two 75″ displays, three Poly E60 cameras, ceiling microphone arrays, wireless gooseneck and lavalier microphones, ten ceiling speakers, and dual QSC touch panel controls.

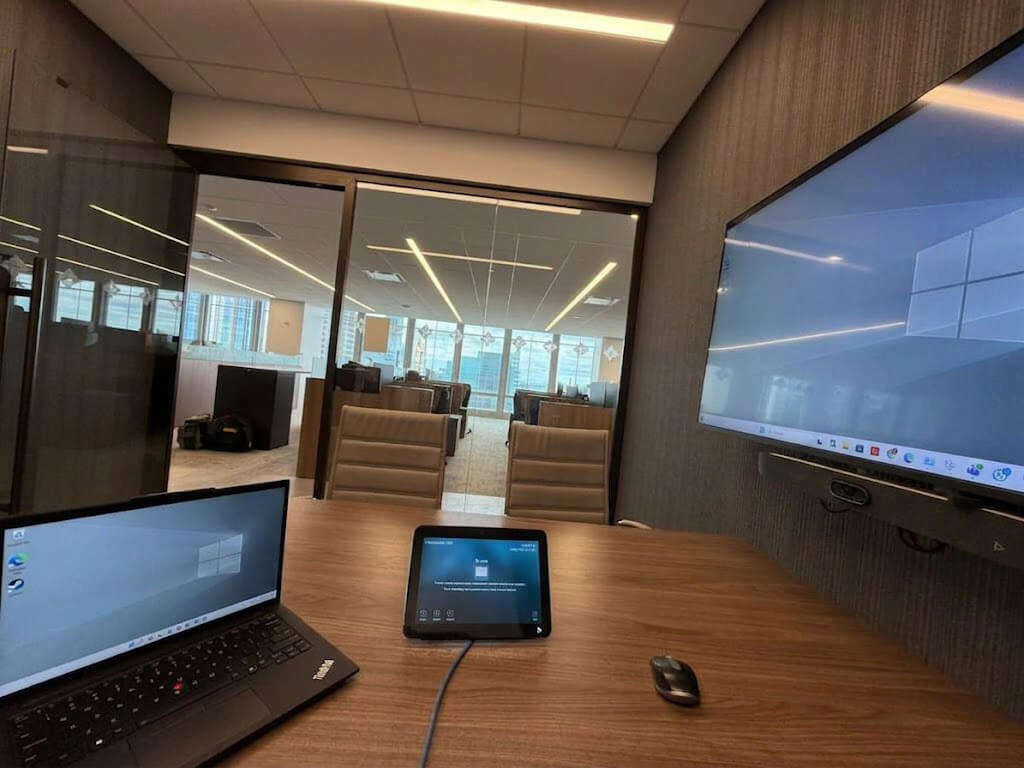

The CEO Office and several additional meeting rooms, ranging from huddle-sized to large conference rooms, were outfitted with all-in-one Poly video bar solutions paired with displays from 55″ up to 98″, each with a room scheduling panel outside the door for easy booking. A dedicated recording room and a large presentation room round out the AV package.
Beyond AV, CTCI implemented a full electronic access control and video surveillance system, built on the cloud-based Alta platform by Avigilon/Motorola, across 8 secured doors. The scope also included building out a new IT room with server cabinets and cable management, running structured horizontal cabling to nearly 200 outlet locations throughout the floor, and installing an office-wide sound masking system to enhance acoustic privacy and confidentiality in open work areas.
Key Facts
- 8 secured doors with electronic access control
- Nearly 200 structured cabling outlet locations
- Displays ranging from 55″ to 110″ across rooms
- Cloud-based access control & video surveillance (Alta by Avigilon/Motorola)
- Office-wide sound masking system for acoustic privacy
- New IT room build-out with server cabinets and cable management
Rooms & Equipment Detail
Empire Conference Room
- One 110″ display and two 75″ displays
- Poly G62 Codec with three Poly E60 cameras
- Two ceiling microphone arrays, wireless gooseneck mic, wireless lavalier mic
- Ten ceiling speakers
- Two QSC touch panel controls with tabletop accessory
- Three QSC encoders at table for USB-C and HDMI

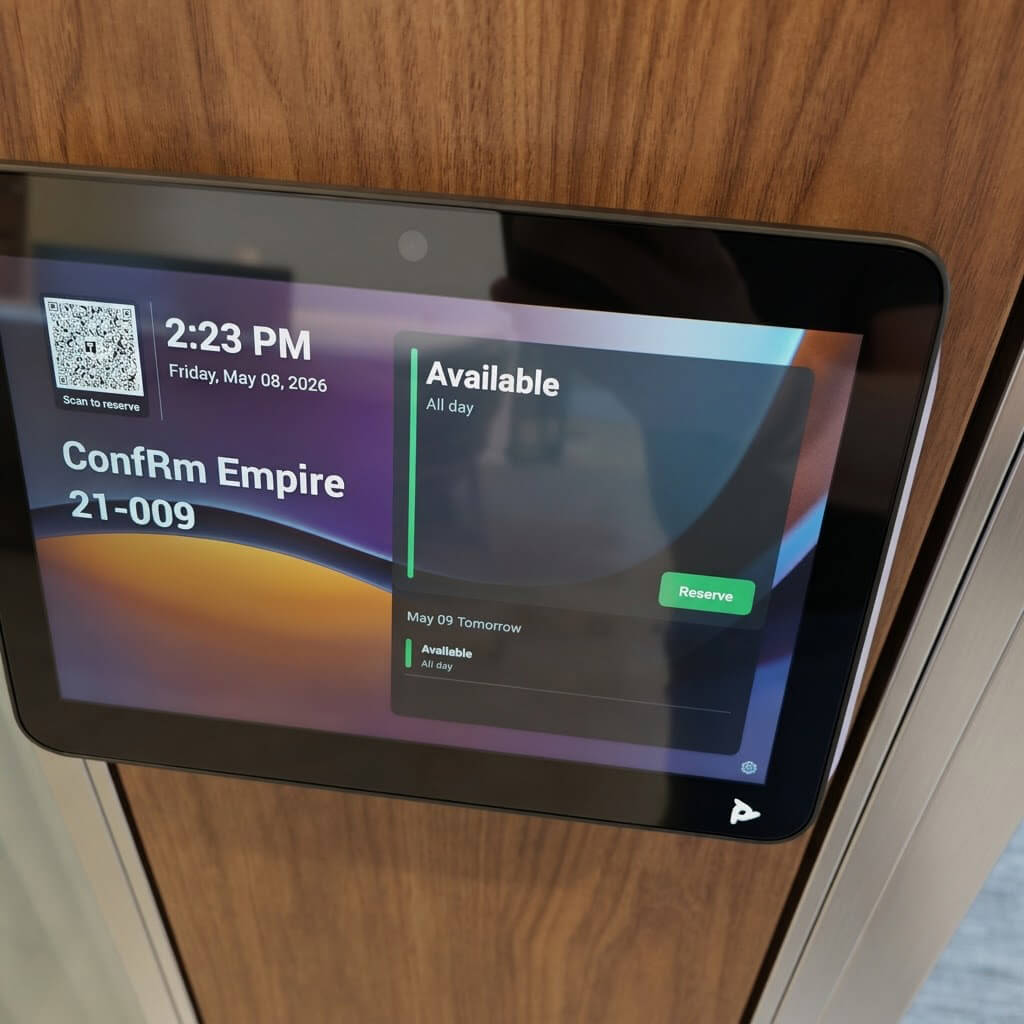

- Room scheduler outside room; BYOD functionality
CEO Office
- One 75″ display
- Poly X53 all-in-one video bar with touch panel
- BYOD functionality
Meeting Rooms 21-032 and 32-037 (2 rooms)
- One 98″ display per room
- Poly X72 all-in-one video bar with touch panel
- Room scheduler outside each room
Meeting Rooms 21-040 and 21-041 (2 rooms)
- One 86″ display per room
- Poly X72 all-in-one video bar with touch panel
- Room scheduler outside each room
Meeting Room 21-039
- One 55″ display
- Poly X32 all-in-one video bar with touch panel
- Room scheduler outside room
Room 21-027
- One 110″ display and one 75″ display
- Poly G62 Codec with two Poly E60 cameras
- One ceiling microphone array, five ceiling speakers
- Touch panel control with tabletop accessory
- Room scheduler outside room
Recording Room 21-042
- 32″ tabletop display
- Poly X32 all-in-one video bar
- Room scheduler outside room
Access Control & Video Surveillance
- 8 doors secured with card readers, motion sensors, door position sensors, and electric strike/magnetic lock hardware
- Cloud-based Alta by Avigilon/Motorola platform, compatible with existing base-building system
- New access control headend installed in the IDF
- (2) dual-lens cameras and (3) fixed IP cameras covering all controlled doors
- Cloud-based video management integrated with access control; 30 days of cloud storage
Structured Cabling & IT Room
- Copper cabling to data outlets across the floor (phone, wall, ceiling, TV, furniture, floor, and WAP locations)
- New IT room build-out with three server cabinets, copper termination panels, and wire management
Sound Masking
- Sound masking system covering all corridors and open office areas
- Speakers, wiring, and headend installed and tuned for uniform sound levels
